| الاسم التجاري: | Or-electric |
| رقم الطراز: | ORP (ب) |
| الـ MOQ: | 1 مجموعة |
| Price: | 1860~2780 USD/set |
| شروط الدفع: | د / ف، / تي تي، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 300 مجموعة / سنة |

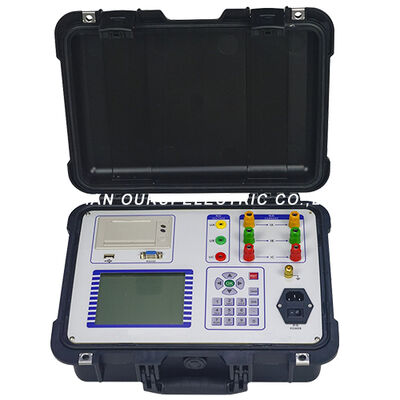

ORP(B) No-load & Load Characteristic Tester
I. Product introduction
ORP(B) No-load & load characteristic tester has many advantages such as small size, light weight, high measurement accuracy, good stability, and simple operation.It replaces the previous multi-meter method to measure transformer loss. The wiring is simpler, and the test and recording are more convenient, which greatly improves the work efficiency.
II.Features
● It can measure the transformer's no-load current, no-load loss, short-circuit voltage, and short-circuit loss; it can perform harmonic tests and analyze up to the 31st harmonic.
● It can automatically switch the range and automatically make relevant corrections to the test results.
● When performing a no-load test on a three-phase transformer, the instrument can automatically determine whether the wiring is correct and display the three-phase voltage and current phasor diagram.
● It can preset 40 sets of test product parameters, and can delete and add them at any time as needed.
● It is equipped with a USB interface, RS232 interface, and thermal printer.
● It comes with a real-time electronic clock to automatically record the date of the test.
● It has power-off storage and browsing functions, and can store 500 sets of experimental results.
● It can be connected to an external voltage transformer and current transformer for extended range measurement.
III. Technical parameters
|
Measurement range |
voltage |
0～600V |
|
current |
0～60A |
|
|
frequency |
45Hz～65Hz |
|
|
Accuracy |
voltage |
0.2 class |
|
current |
0.2 class |
|
|
frequency |
0.2 class |
|
|
power |
±0.2%(CosΦ>0.1) ±1.0%(0.02<CosΦ<0.1) |
|
|
Insulation strength |
The insulation resistance of the voltage and current input terminals to the housing is ≥ 100MΩ |
|
|
The working power input terminal is subjected to 2kV (effective value) of power frequency between the housing and the working power input terminal for 1 minute. |
||
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
