| الاسم التجاري: | Or-electric |
| رقم الطراز: | OR3F |
| الـ MOQ: | 1 مجموعة |
| Price: | 5140~7720 USD/set |
| شروط الدفع: | د / ف، / تي تي، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 100 مجموعة / سنة |

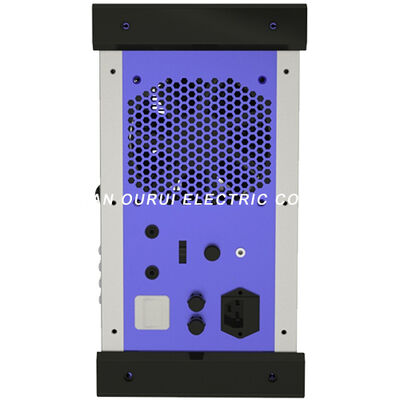

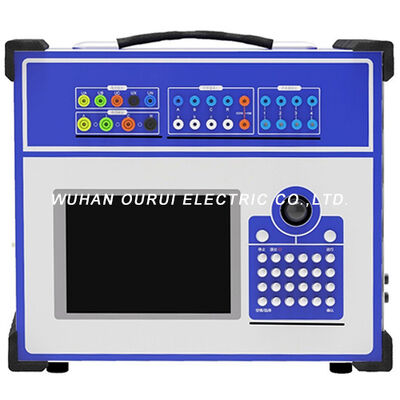

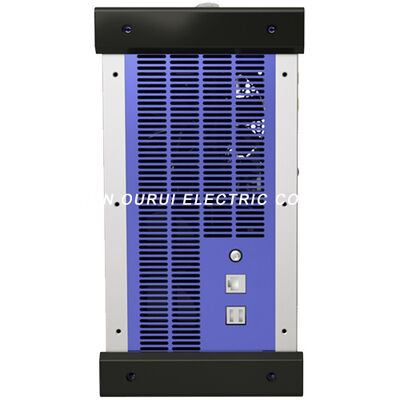

OR3F Relay Protection Tester
I. Product introduction
OR3F relay protection tester is controlled by a high-performance industrial computer, with built-in Windows platform software, and can also be operated externally through a computer. Adopting high fidelity and high reliability modular linear power amplifier, the output waveform is smooth.It can output standard 4-phase voltage and 3-phase current, and has a built-in independent DC output dedicated power supply. The switch node configuration is rich, with 8-way contact input and 4 pairs of blank node output. The advantages of small size, high precision and complete protection function have further improved the cost performance of the instrument.
II. Technical parameters
|
AC current output |
Accuracy |
0.2 class |
||
|
Phase current output(RMS) |
0～40A |
|||
|
3-parallel current output(RMS) |
0～120A |
|||
|
Phase current long-term working value(RMS) |
10A |
|||
|
Phase current output power(Max) |
450VA |
|||
|
3-parallel current output power(Max) |
900VA |
|||
|
Working time of max 3-parallel current output |
10s |
|||
|
Fundamental frequency range |
0～1000Hz |
|||
|
Harmonic order |
0～20 times |
|||
|
DC current output |
Accuracy |
0.5 class |
||
|
Current output |
0～±10A/phase,0～±30A/3-parallel |
|||
|
Max output load voltage |
20V |
|||
|
AC voltage output |
Accuracy |
0.2 class |
||
|
Phase voltage output(RMS) |
0～120V |
|||
|
Line voltage output(RMS) |
0～240V |
|||
|
Phase/Line voltage output power |
80VA / 100VA |
|||
|
Fundamental frequency range |
0～1000Hz |
|||
|
Harmonic order |
0～20 times |
|||
|
DC voltage output |
Accuracy |
0.5 class |
||
|
Phase voltage output amplitude |
0～±160V |
|||
|
Line voltage output amplitude |
0～±320V |
|||
|
Phase/Line voltage output power |
70VA / 140VA |
|||
|
Switch & time measurement |
Switch input |
8-way |
Blank node:1～20mA,24V |
|
|
Switch output |
4 pairs |
DC:220V／0.2A；AC:220V／0.5A |
||
|
Time measurement |
Range |
0.1ms ～ 9999s |
||
|
Accuracy |
0.1ms |
|||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
