ORPD-H4D Partial Discharge Detector
I.Product introduction

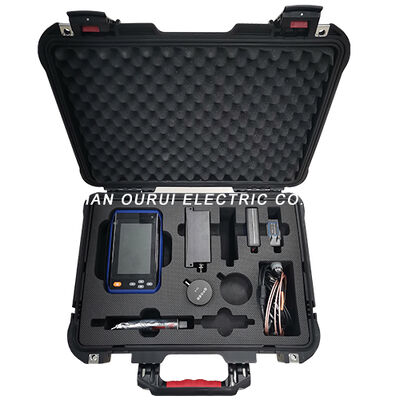

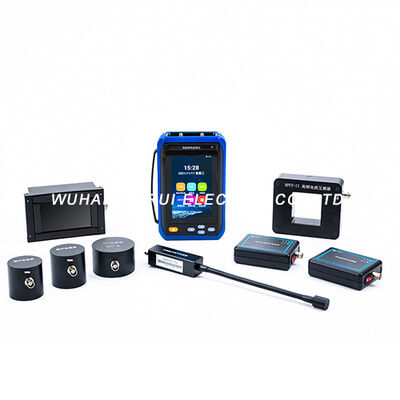

ORPD-H4D partial discharge detector is a multi-functional handheld instrument, which adopts the current popular Android system. Based on ultrasonic and high-frequency current detection methods, it can observe the measurement signal in multiple cycles, identify the frequency of discharge, and analyze it through multiple modes. It can clearly judge the fault and is suitable for partial discharge detection of electrical equipment such as GIS, switch cabinets, transformers and power cables.
II. Technical parameters
|
Host parameters |
|
Measurement range |
-20~80dB |
|
|
Channel |
4 channels:1 TEV,1 US, 1 UHF & 1 HFCT |
Measurement error |
±1dB |
|
|
Sampling accuracy |
12bit |
Resolution |
1dB |
|
|
Synchronous mode |
Internal, external, optical |
Output interface |
BNC port-Signal unit, wireless |
|
|
TEV |
UHF |
|||
|
Detection bandwidth |
3M-100MHz |
Detection bandwidth |
300MHz～1.5GHz |
|
|
Measurement range |
0~60dB |
Output mode |
BNC port-Signal unit, wireless |
|
|
Measurement error |
±2dB |
Receiving mode |
Antenna reception |
|
|
Resolution |
1dB |
Transmission mode |
Coaxial cable |
|
|
Pules of per cycle |
Up to 720 |
Detection sensitivity |
<-60dBm |
|
|
Frequency of min pulse |
10Hz |
|||
|
Output interface |
Standard SMA |
Hardware |
||
|
Contact type US |
Display |
5.0-inch TFT color LCD |
||
|
Frequency range |
20kHz～300kHz |
Resolution |
800×480 |
|
|
Output impedance |
50Ω |
Operation |
Touch-screen & buttons |
|
|
Detection sensitivity |
0.1mV |
Storage |
TF card |
|
|
Measurement range |
0.1mV～1V |
Interface |
3.5mm Stereo headphone jack |
|
|
Output interface |
Standard SMA |
Power supply |
DC-12V/2A |
|
|
Non-contact type US |
Extended functions |
USB-Type C/RFID/WIFI/blue-tooth |
||
|
Center frequency |
40kHz |
Power supply |
||
|
Resolution |
0.1uV |
Internal power supply |
batteries(4800mAH 7.4V) |
|
|
Accuracy |
±0.1uV |
Working time |
Around 7 hours, 3 hours charging time |
|
|
Measurement range |
0.5uV～1mV |
Size & Weight |
||
|
Output interface |
Standard SMA |
Size |
180mm×110mm×40mm |
|
|
Weight |
0.85kg |
|||
|
HFCT |
Environment |
|||
|
Detection bandwidth |
1M-30MHz |
Working TEMP |
-20℃ to 50℃ |
|
|
Transmission impedance |
>5mV/mA(10MHz ) |
Storage TEMP |
-40℃ to 70℃ |
|
|
Output impedance |
50Ω |
RH |
10%-90%(no condensation ) |
|
|
Altitude |
≤3000m |
|||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
