| Nom De Marque: | Or-electric |
| Numéro De Modèle: | Or3e |
| Nombre De Pièces: | 1 ensemble |
| Price: | 3580~5358 USD/set |
| Conditions De Paiement: | D/P, T/T, Western Union, MoneyGram |
| Capacité à Fournir: | 100 ensembles/an |

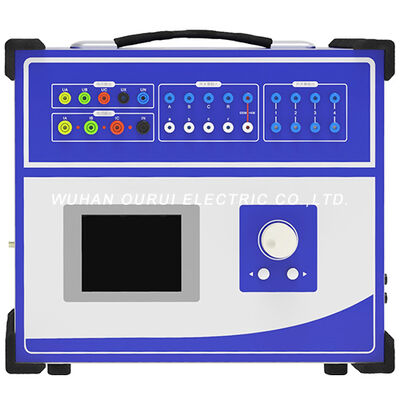

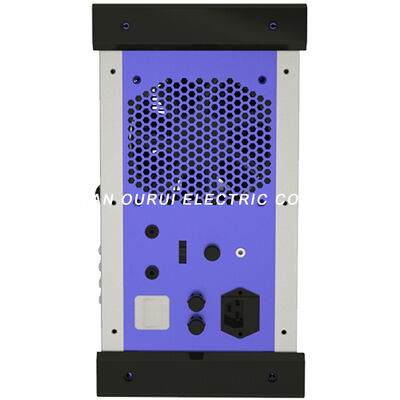

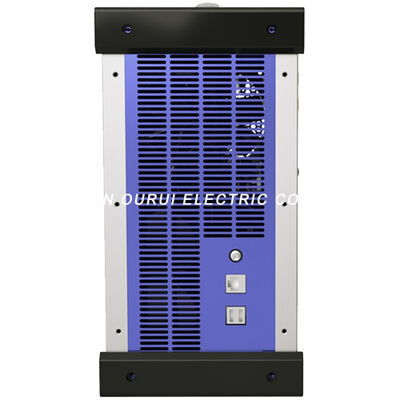

OR3E Relay Protection Tester
I. Product introduction
OR3E relay protection tester adopts high-performance single-chip control, and is easy to operate as a single machine. The instrument panel can be operated by flexibly rotating the mouse through the large-screen LCD display; it can also be operated by connecting to a computer through Windows platform software. It can output standard 4-phase voltage and 3-phase current, and has a built-in independent DC output dedicated power supply. The switch node configuration is rich, with 8-way contact input and 4 pairs of blank node output. The advantages of small size, high precision and complete protection function have further improved the cost performance of the instrument.
II. Technical parameters
|
AC current output |
Accuracy |
0.2 class |
||
|
Phase current output(RMS) |
0～40A |
|||
|
3-parallel current output(RMS) |
0～120A |
|||
|
Phase current long-term working value(RMS) |
10A |
|||
|
Phase current output power(Max) |
450VA |
|||
|
3-parallel current output power(Max) |
900VA |
|||
|
Working time of max 3-parallel current output |
10s |
|||
|
Fundamental frequency range |
0～1000Hz(Online),0~300Hz(single) |
|||
|
Harmonic order |
0～20 times(Online),0~6 times(single) |
|||
|
DC current output |
Accuracy |
0.5 class |
||
|
Current output |
0～±10A/phase,0～±30A/3-parallel |
|||
|
Max output load voltage |
20V |
|||
|
AC voltage output |
Accuracy |
0.2 class |
||
|
Phase voltage output(RMS) |
0～120V |
|||
|
Line voltage output(RMS) |
0～240V |
|||
|
Phase/Line voltage output power |
80VA / 100VA |
|||
|
Fundamental frequency range |
0～1000Hz(Online),0~300Hz(single) |
|||
|
Harmonic order |
0～20 times(Online),0~6 times(single) |
|||
|
DC voltage output |
Accuracy |
0.5 class |
||
|
Phase voltage output amplitude |
0～±160V |
|||
|
Line voltage output amplitude |
0～±320V |
|||
|
Phase/Line voltage output power |
70VA / 140VA |
|||
|
Switch & time measurement |
Switch input |
8-way |
Blank node:1～20mA,24V |
|
|
Switch output |
4 pairs |
DC:220V／0.2A；AC:220V／0.5A |
||
|
Time measurement |
Range |
0.1ms ～ 9999s |
||
|
Accuracy |
0.1ms |
|||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
