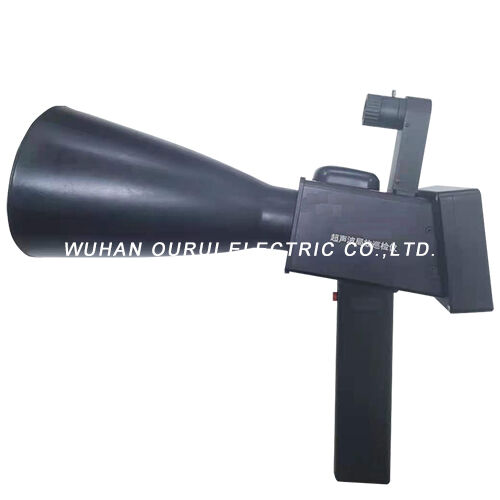

ORPD-H1E Partial Discharge Detector
I. Product introduction
ORPD-H1E partial discharge inspection instrument is a detection device that diagnoses hidden faults in power lines by collecting abnormal ultrasonic signals from power lines and analyzing them through software. This device determines the location and type of fault without power outages. After collecting abnormal ultrasonic signals through ultrasonic detectors (ultrasonic sensors), the device transmits them to the host. At the same time, the built-in analysis software of the host accurately diagnoses the type and severity of the fault, and converts them into audible sound signals and waveform outputs, helping inspection personnel to accurately detect hidden faults in the line, prevent the occurrence of malignant faults, avoid unnecessary power outages, and improve power supply reliability. At the same time, it also improves the work efficiency of inspection personnel and reduces their labor intensity.
II. Technical parameters
|
Circuit system |
Analog & digital circuits |
Resolution |
1dB |
|
CPU |
1GHz |
Error |
±1dB |
|
Memory |
2GB DDR3, 16GB Emmc |
Sensor sensitivity |
-65dB (0dB = 1volt/μbar rms SPL) |
|
Display |
5.0-inch TFT LCD |
Sensor center frequency |
40kHz |
|
Interface |
TF card,USB(TYPE-C), earphone |
Sensor diameter |
16mm |
|
SD |
TF card,more than 8G |
Working TEMP |
-25℃~70℃ |
|
Camera |
5 megapixel HD camera |
Working RH |
0~95% |
|
Accessories |
GPS, Thermometer & Hygrometer, High brightness laser locator |
Charger |
Input:100-240V, 50/60Hz Output:voltage 20V, current3.25A |
|
Storage function |
GPS coordinate, date&time,TEMP&RH |
||
|
Measurement range |
-7dBμV ~ 68dBμV |
Power supply |
Li-batteries14.8V/2600mAH,more than 8 hours working time |
|
Frequency range |
20kHz~150kHz |
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
