| Ονομασία μάρκας: | Or-electric |
| Αριθμός μοντέλου: | ORTSS-35kV |
| MOQ: | 1 Σετ |
| Price: | 40000~240000 USD/set |
| Όροι πληρωμής: | D/P, T/T, Western Union, MoneyGram |
| Ικανότητα εφοδιασμού: | 200 σετ/έτος |

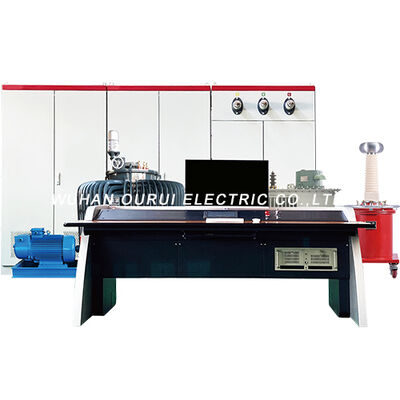

ORTSS-35kV Transformer/Reactor Integrated Test System (Split-type)
I. Product introduction
35kVtransformer/reactor Integrated test system (split-type) is designed in strict accordance with relevant standards such as GB 50150/IEC 60076-3. It adopts a high-end office desk-style console and is equipped with a large LCD display, which is both beautiful and practical. It can perform no-load test, load test, power-frequency voltage withstand test, induced voltage withstand test, etc. All tests can be automated without complex operations and manual calculations, the test results are automatically calculated and saved.
II. Electric tests (customizable)
● No-load test
● Load test
● Power-frequency voltage withstand test
● Induced voltage withstand test
III. Configuration list (customizable)
|
Equipment name |
QTY (set) |
Note |
|
|

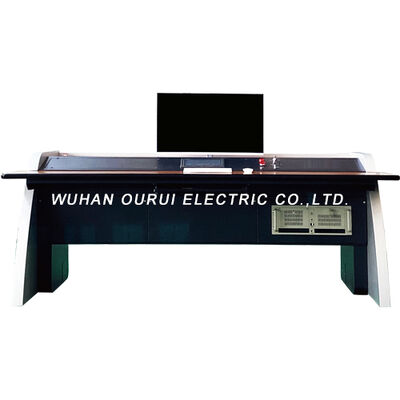

Test system console |
Control bench |
1 |
Include HIM touch screen and well-known brand electronic components |
|
Power analyzer |
1 |
4U chassis |
|
|
Industrial computer |
1 |
Advantech |
|
|
Test software system |
1 |
Written in Visual Studio, dedicated to comprehensive test control and measurement |
|
|
LCD |
1 |
27-inch |
|
|

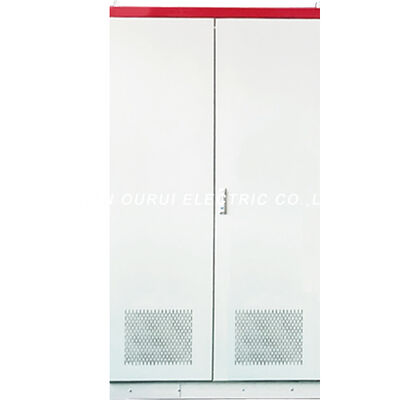

LV auxiliary control cabinet |
Control cabinet |
1 |
Include Siemens PLC and well-known brand electronic components |
|
LV capacitor bank |
1 |
3-phase |
|
|
HV capacitor control cabinet |
Control cabinet |
1 |
Include capacitor group switching devices and well-known brand electronic components |
|
HV capacitor bank |
1 |
1-phase |
|
|

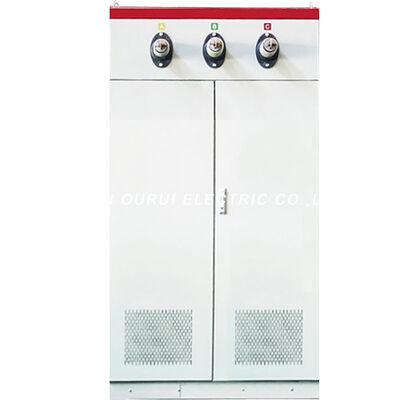

CT PT control cabinet |
Control cabinet |
1 |
Include switching devices and well-known brand electronic components |
|
Current transformer |
3 |
Dry-type, 0.05 class |
|
|
Voltage transformer |
3 |
Dry-type, 0.05 class |
|
|

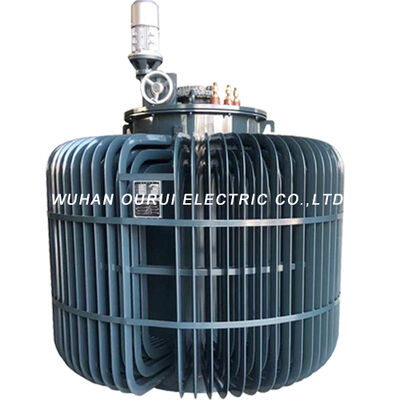

Induced electric voltage regulator |
1 |
Oil-immersed,with casters |
|
|
Step-up test transformer |
1 |
Electric switching |
|
|

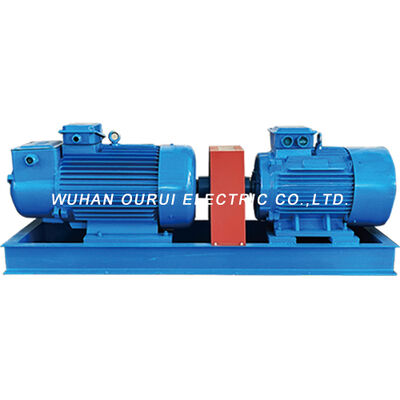

Generator set |
1 |
50Hz/150Hz |
|
|
AC test transformer |
1 |
Optional protection resistor, voltage divider and peak meter |
|
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
