| ブランド名: | Or-electric |
| モデル番号: | ORGC-10E |
| MOQ: | 1セット |
| Price: | 830~1250 USD/set |
| 支払条件: | D/P,T/T,ウェスタンユニオン,マネーグラム |
| 供給能力: | 150セット/年 |

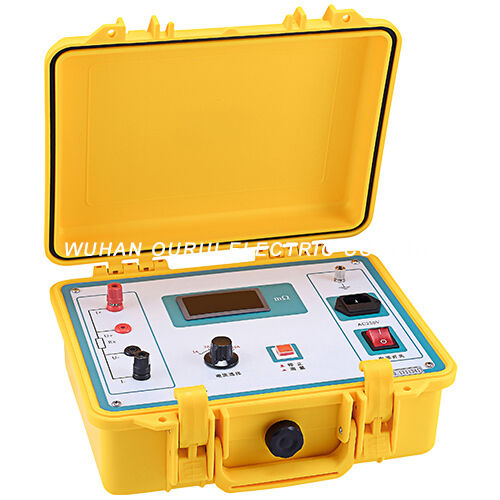

ORGC-10B Earth Continuity Tester
I. Product introduction
ORGC-10B earth continuity tester is specifically designed to test the electrical integrity of grounding devices, and its various technical indicators meet or exceed the requirements of relevant standards. The instrument adopts new power supply technology to overcome the drawbacks of instantaneous current of pulse power supply, with large output current and long-term continuous operation. It uses LED display to show test results, with intuitive readings and good repeatability; The instrument is small in size, light in weight, and easy to carry
II. Technical parameters
|
Output |
1A,2A,5A,10A |
|
Measurement range |
1～1999mΩ |
|
Accuracy |
±(0.5%+2d) |
|
Resolution |
1mΩ |
|
Power supply |
AC220V±10%,50Hz |
|
Environment |
-10℃～40℃,≤80 %RH |
|
Weight |
5kg(no accessories) |
|
Size |
300mm×270mm×200mm |
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
