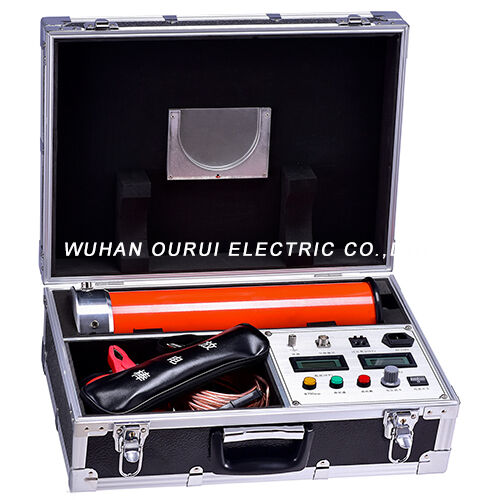

ORUG DC HV Generator(One-body)
I. Product introduction
ORUG DC HV Generator(One-body) is designed and manufactured according to the DL/T848.1-2004 standard. specifically for detecting the electrical insulation strength and leakage current of power devices. This instrument places the voltage doubler and the main unit in one cabinet. Combining the latest technology and selecting the latest components. it achieves advantages such as small size. high power. light weight. easy operation. safety and reliability. and high power output quality. It is an ideal testing instrument for the HV testing industry.
II. Technical parameters
|
Model |
60/2 |
60/3 |
60/5 |
120/2 |
120/3 |
120/5 |
|
Rated voltage(kV) |
60 |
60 |
60 |
120 |
120 |
120 |
|
Rated current(mA) |
2 |
3 |
5 |
2 |
3 |
5 |
|
Rated power(W) |
120 |
180 |
300 |
240 |
360 |
600 |
|
Control box weight(kg) |
9 |
10 |
||||
|
Voltage doubler size(mm³) |
465*390*190 |
565*390*190 |
||||
|
Voltage doubler height(mm) |
440 |
535 |
||||
|
Output voltage accuracy |
±(1.0% rd±2 words) |
|||||
|
Output current accuracy |
±(1.0% rd±2 words) |
|||||
|
Ripple factor |
≤0.5% |
|||||
|
Working mode |
Intermittent use(rated load,30mins/1.1times rated voltage,10mins) |
|||||
|
Over-load capacity |
No-load voltage exceeds the rated voltage by 10%,10mins/Max charging current is 1.25 times the rated current |
|||||
|
Power supply |
AC220V±10%, 50HZ/60Hz |
|||||
|
Environment |
-10-40℃,≤85%RH(no condensation),Altitude below 1500 meters |
|||||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
