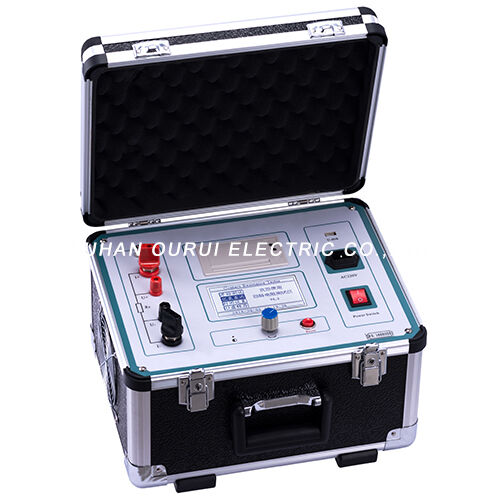

ORC(100D) Loop Resistance Tester
I.Product introduction
ORC (100D) loop resistance tester has an ergonomic design for the operation panel, which is in line with the operating habits. It uses high-frequency switching power supply and digital circuit technology, and is suitable for measuring the loop resistance of switch control equipment. The test current adopts the national standard recommended DC 100A. The loop resistance can be directly measured at DC 100A, and the test results are displayed on a large-screen LCD. It also has functions such as data storage, output printing, and time setting. There is also a 50A gear for users to choose, the user-defined test time, the maximum setting time is 599S, which is much greater than the standard 60S, it meets the requirements of on-site high-voltage switch maintenance of power and power supply departments and loop resistance testing of high-voltage switch factories.
II. Technical parameters
|
Measurement range |
1～2999.9μΩ |
|
Resolution |
1～99.99μΩ,0.01μΩ 100.0～2999.9μΩ,0.1μΩ |
|
Output current |
DC 50A,100A |
|
Measurement accuracy |
±(0.5%rd±2d) |
|
Display |
LCD |
|
Working time |
5s～599s(settable) |
|
Communication |
U-disk |
|
Max record storage |
200 |
|
Power supply |
AC220V±10%,50Hz/60Hz |
|
Environment |
-10℃～40℃,≤80 %RH |
|
Size |
360mm×300mm×250mm |
|
Weight |
8Kg(no accessories) |
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
