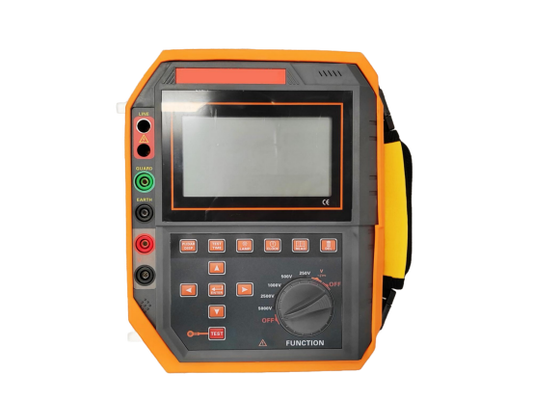

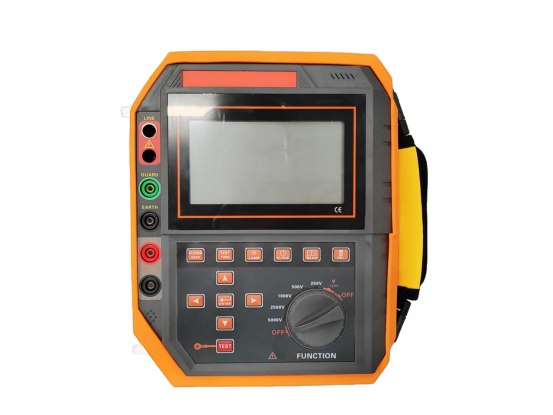

ORI(2F) Insulation resistance tester
I. Product introduction
The insulation resistance tester, also known as a megohmmeter, high-voltage megohmmeter, or high-voltage insulation resistance tester, is specifically designed for conducting insulation resistance tests in laboratory or field environments. This instrument features a large LCD screen with gray-backlit display, data storage, and data retrieval functions. It also automatically calculates the absorption ratio and polarization index, and automatically stores measurement data for 15 seconds, 30 seconds, 1 minute, or 10 minutes. With its high resolution, user-friendly operation, portability, accuracy, reliability, stable performance, and strong anti-interference capability, this device is an essential tool widely used in telecommunications, power utilities, meteorological services, data centers, oilfield operations, mechanical and electrical installation and maintenance projects, as well as in industrial enterprises that utilize electricity as industrial power or energy source.
This device is suitable for measuring the resistance values of various insulating materials as well as the insulation resistance of transformers, motors, cables, and electrical equipment. The digital insulation resistance meter is constructed using medium-and large-scale integrated circuits and incorporates a high-precision microcurrent measurement system, a digital step-up voltage conversion system, and an automatic discharge circuit. Measurement can be performed simply by connecting the device under test with a high-voltage lead and a signal lead. The measurement process is automatic; the results are displayed on a large screen and stored automatically. The rated output test voltage range is 100 V–2500 V; the insulation resistance measurement range is 0.01 MΩ–2.50 TΩ. The DC voltage measurement range is 0 V–1000 V DC; the AC voltage measurement range is 0 V–750 V AC.
II. Technical parameters
|
function |
Insulation resistance, polarization index, absorption ratio, AC/DC voltage testing; automatic discharge function; ambient temperature testing; clock function |
|
source |
DC 14.8V 2200mAh rechargeable lithium-ion battery; full charge voltage: approximately 16.8V |
|
testing tension |
Voltage range: 100V,250V,500V,1000V,2500V |
|
short-circuit current |
≥5 mA (options available: ≥10 mA, ≥3.5 mA, or ≥1.5 mA) |
|
Wiring Method |
L-terminal: The "L" denotes the high-voltage output terminal, also known as the line terminal, which is connected to one end of the device under test. |
|
G terminal: The "G" terminal is known as the shielding terminal and is used in the three-electrode method to measure the insulation resistance of insulating materials or cables; it is connected to the electrode protection ring terminal. |
|
|
E terminal: The "E" terminal is designated as the ground terminal and is connected to the ground or neutral terminal of the device under test—e.g., the metal casing of a motor, the transformer core, or the cable shielding layer. |
|
|
V-terminal: AC/DC voltage measurement terminal (AC/DC automatic identification) |
|
|
resolution ratio |
Insulation resistance: 0.01 MΩ |
|
AC voltage: 0.01 V |
|
|
DC voltage: 0.01 V |
|
|
Measurement Time |
1–30 minutes (depends on the measurement method; configurable) |
|
be in a poor light |
Controllable white screen backlight – ideal for use in dimly lit environments. |
|
shift |
Fully automatic gear shifting |
|
LCD |
4-digit LCD display with white backlight |
|
LCDsize |
128mm×75mm |
|
LCDdisplay field |
124mm×67mm |
|
Measurement Indicator |
LED flashing indicator during measurement; progress bar display |
|
Charging Indicator |
During charging, the indicator light on the charger will glow red; once the device is fully charged, it will glow green. |
|
size |
Instrument dimensions: Length × Width × Height = 258 mm × 215 mm × 83 mm |
|
Standard Test Line |
1 red high-voltage test probe; 1 green test lead and 1 black test lead |
|
cell voltage |
displays the remaining battery level in real time; please charge the device promptly when the battery level is low. |
|
communication interface |
Equipped with a USB port; stored data can be uploaded to a computer for saving or printing. |
|
Communication Line |
1 USB communication cable (length: 1.5 m) |
|
Operating current |
Standby: 25 mA Max (backlight off); Backlight: 25 mA Max (when using separate backlight); Measurement: 450 mA Max (backlight off) |
|
quality |
Instrument: 1.85 kg (including battery) |
|
Total weight: 3.50 kg (including packaging) |
|
|
toolkit |
Yellow-and-black dual-color toolkit – convenient to carry and visually appealing. |
|
Workplace temperature and humidity |
-10°C to 40°C; relative humidity below 80% |
|
Storage temperature and humidity |
-20°C to 60°C; relative humidity below 70% |
|
withstand voltage |
AC 3700 V RMS (measured between the front and rear terminals of the housing) |
|
insulation resistance |
≥20 MΩ (500 V between the bottom cover screw and the top cover) |
|
Electromagnetic characteristics |
IEC61326(EMC) |
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
