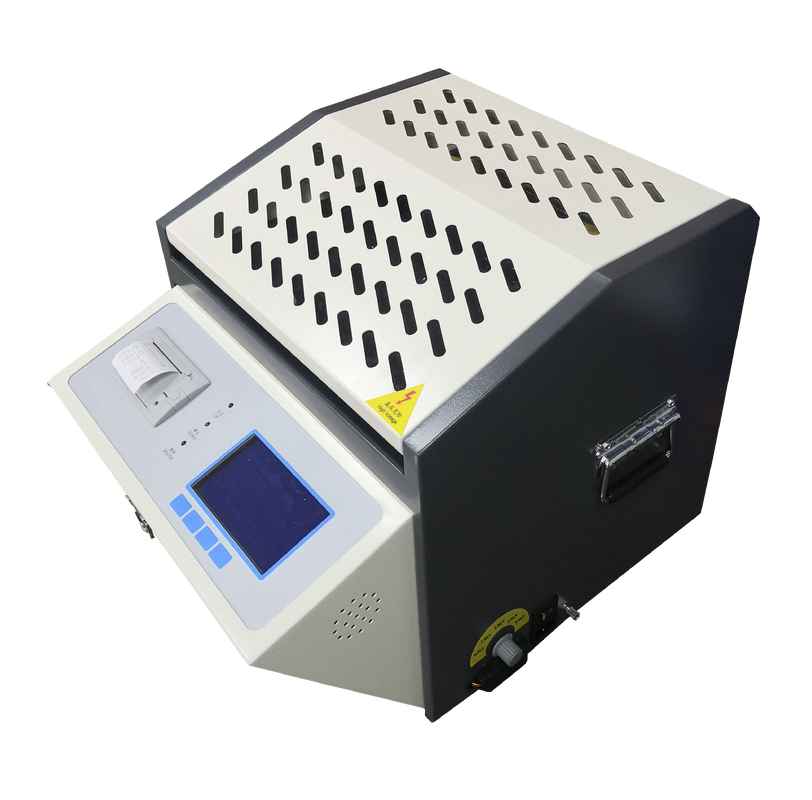

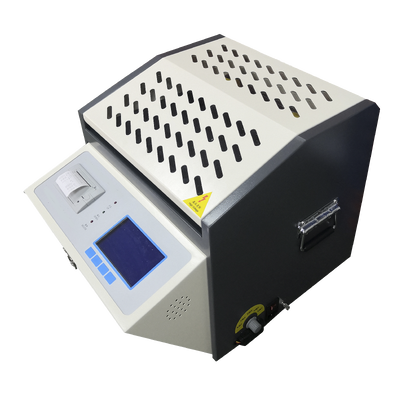

ORO(S1R) Oil Dielectric Strength Tester
I. Product introduction
The ORO (S1R) Oil Dielectric Strength Tester is a high-accuracy, fully digital industrial instrument meticulously developed by our company's research and technical team in accordance with the relevant provisions of the national standard GB/T 507-2002 and the industry standards DL/T 474.4-2018 and DL/T 596-2015, leveraging our expertise through extensive field testing and sustained, dedicated development efforts. This device features user-friendly operation and an elegant, aesthetically pleasing design. Equipped with fully automatic digital computer-controlled technology, it offers high measurement accuracy, strong interference resistance, and reliable safety performance.
II. Features
● The instrument is equipped with a high-capacity microcontroller for precise control, ensuring stable and reliable operation.
● The built-in wide-range watchdog circuit prevents system crashes.
● Multiple operation options: The instrument software supports both the GB1986 and GB2002 national standard methods, as well as custom operation settings, catering to the diverse needs of various users.
● The instrument's oil cup is manufactured through a single-casting process using special glass, effectively preventing oil leakage or other interference issues.
● The instrument's unique high-voltage end sampling design allows test signals to be directly fed into the A/D converter, eliminating errors introduced by analog circuits and thereby ensuring more accurate measurement results.
● The instrument features built-in protection functions such as overcurrent, overvoltage, and short-circuit protection, along with exceptional anti-interference capability and excellent electromagnetic compatibility.
● The device can be equipped with a Bluetooth or RS232 interface, or an RS232 wireless communication module for direct data transmission to a computer.
● Portable design makes it easy to carry and convenient for use both indoors and outdoors.
III. Technical parameters
|
Boost converter capacity |
1.5 kVA |
|
Ramp-up speed |
Four selectable speed settings: 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, and 5.0 kV/s |
|
output voltage |
0–80 kV (0–100 kV customizable) |
|
Power Distortion Rate |
＜1% |
|
display mode |
Large-screen LCD Chinese character display |
|
electrode gap |
Standard: 2.5 mm |
|
ambient temperature |
0～40℃ |
|
relative humidity |
≤85% |
|
working power supply |
AC 220V ± 10% |
|
supply frequency |
50±5 Hz |
|
outline dimension |
409 mm×393 mm×388 mm |
|
instruments weight |
29 kg |
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
