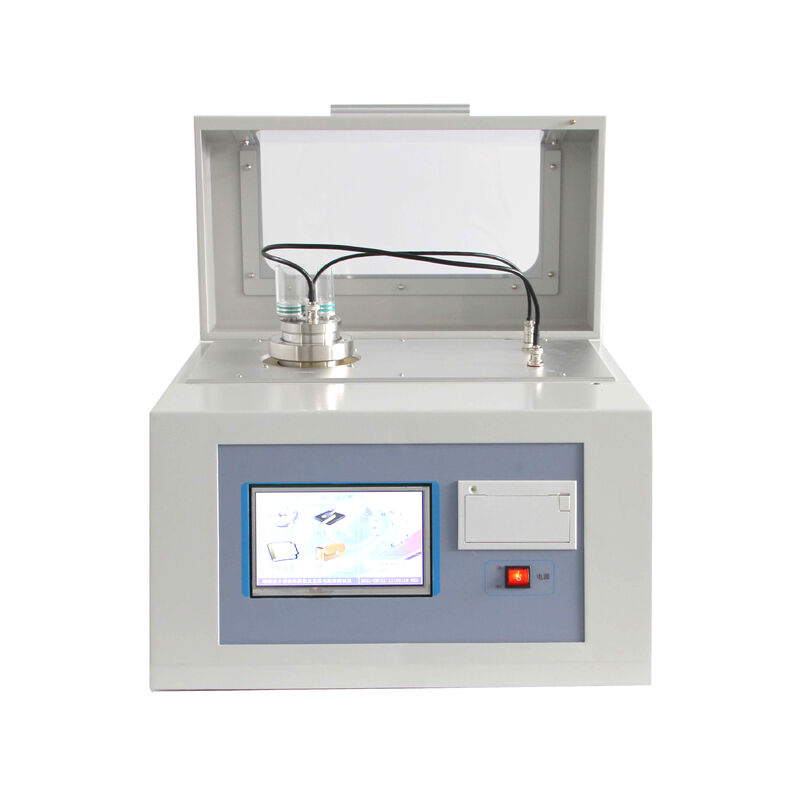

ORO(L3F) Oil Dielectric Loss Tester

ORO(L3F) Oil Dielectric Loss Tester

I. Product introduction

In the preventive test of electrical equipment insulation, a periodic measurement for the parameter of insulation oil was required. The insulation oil dielectric loss factor and DC resistivity measurement is one of the main methods in a series of preventive tests. Bridge method mostly used for a long time, but this method is complex to operate, also the measurement accuracy will influence by many factors, and that may easily result in a large measurement error. Along with the electronic technology are highly improved, the power industry’s requirements in the measuring apparatus are continuing increase, including small volume, light weight, easy to operate, fast speed and high precision. Based on related foreign and domestic instrument, our company successfully developed JDC series products, which is relatively advanced in our country at this present. Our instrument are design and manufacture basis on GB5654 and other relative standards, using computer control, simple to use, high accuracy and very efficient, dramatically reduced labor strength of testers.

II. Features

● Our instrument has designed in integrated function of oil cup, heating, temperature control and voltage regulating

● Displayed with color large LCD screen, simple to operate

● Empty cup self-calibration

● Equip with over-voltage, over-current and temperature limitation protection

● Medium frequency induction heating electrode cup and short time uniform heating

● Direct measure temperature with probe placed inside the measuring electrode cup

● Contains sine-wave-generator, high power digital voltage regulator test power supply can provide 50Hz standard voltage

III. Technical parameters

● Test voltage range: 0~2000VAC  0~500VDC

● Test temperature range: room temp~125℃

● Dielectric loss test range: 0.00001~1

● Measurement accuracy:±(indicating value×0.5%+0.0001)

● Relative dielectric constant:±(indicating value×0.5%+0.1)

● Resistivity resolution: 0.001MΩ·m

● Resistive test range: 2.5MΩ·m~20TΩ·m

● Power: 500W

● Supply voltage: AC220V±22V

● Boundary dimension: 470×430×380

● Weight: 25kg

IV. Warranty period & after-sale service

● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
