I. Product introduction

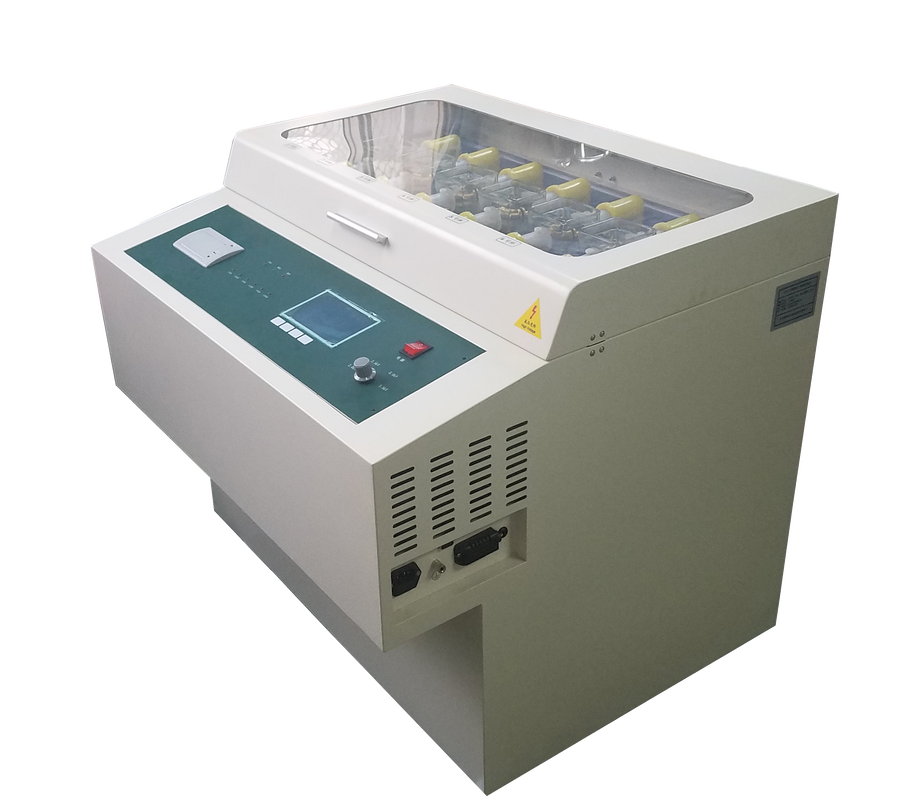

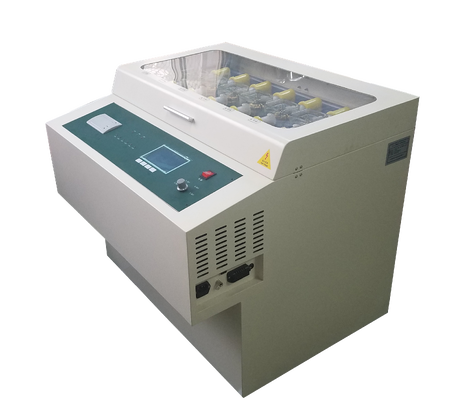

The ORO (S6E) Oil Dielectric Strength Tester is a high-precision, fully digital industrial instrument meticulously developed by our company's research and technical personnel. In accordance with the relevant provisions of the national standard GBT 507-2002 and the industry standards DL/T 474.4-2018 and DL/T 596-2015, our team leveraged their technical expertise, conducted numerous field tests, and persisted through prolonged and dedicated efforts to bring this instrument to fruition. The device features intuitive operation and an aesthetically pleasing design. Thanks to its fully automated digital microcomputer control system, it delivers high measurement accuracy, robust anti-interference capabilities, and ensures safe and reliable performance.
II. Features
● The instrument is controlled by a high-capacity microcontroller, ensuring stable and reliable operation.
● The instrument features an integrated wide-range watchdog circuit, which eliminates system freezes.
● A variety of operational options: the instrument's software supports both GB1986 and GB2002 national standard methods, as well as custom operations, enabling it to accommodate the diverse needs of different users.
● The instrument oil cup is fabricated from specialized glass via a single-casting process, thereby eliminating potential issues such as oil leakage.
● The instrument's unique high-voltage-side sampling design allows test values to be directly fed into the A/D converter, eliminating errors introduced by analog circuits and thereby ensuring more accurate measurement results.
● The instrument features built-in protections against overcurrent, overvoltage, and short circuits, among other functions; it also exhibits exceptional immunity to interference and excellent electromagnetic compatibility.
● The instrument features a six-cup integrated design, enabling simultaneous testing of six oil samples.
● Portable design, easy to move, making it convenient for use both indoors and outdoors.
III. Technical parameters
|
1.5 kVA |
|
|
Rise rate |
Four selectable settings: 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, and 5.0 kV/s |
|
output voltage |
0–80 kV (customizable up to 100 kV) |
|
Power supply distortion rate |
＜1% |
|
display mode |
Large-screen LCD display of Chinese characters |
|
electrode gap |
Standard: 2.5 mm |
|
ambient temperature |
0～40℃ |
|
relative humidity |
≤85% |
|
working power supply |
AC 220V ± 10% |
|
supply frequency |
50±5 Hz |
|
outline dimension |
760 mm×670 mm×770 mm |
|
instruments weight |
48 kg |
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
