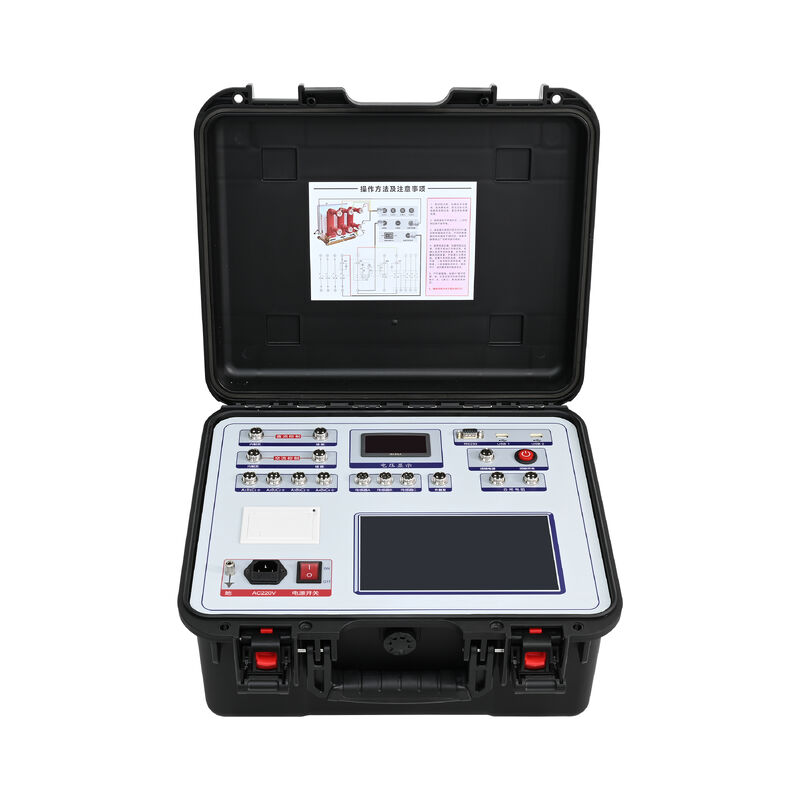

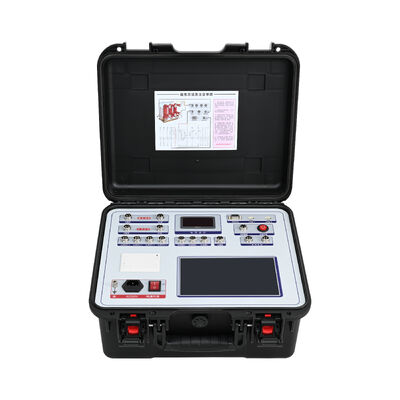

ORS(I2F) HV Switch Characteristic Tester
I. Product introduction
The ORS (I2F) high-voltage switch characteristic tester facilitates dynamic analysis of various circuit breakers by enabling accurate measurement of mechanical characteristic parameters for high-voltage circuit breakers—including oil-minimizing, oil-filled, vacuum, and SF6 types—across multiple voltage levels.
II. Technical parameters
|
Time measurement |
Inherent opening (and closing) time of the 12-channel circuit |
|||
|
Different timing within the open (or close) phase |
||||
|
Difference in phase opening/closing timing between phases (1–99 ms) |
||||
|
Closing (opening) bounce time (number of bounces) |
||||
|
Internal trigger |
1ms～20000ms |
|||
|
External trigger |
0.01ms～200s |
|||
|
Resolution |
0.01ms(below 999ms),0.1ms(1000~9999ms), 1ms(10,000 ms to over 200,000 ms) |
|||
|
Accuracy |
0.05%±0.1ms(below 1000ms) |
|||
|
Speed measurement |
Initial separation/merging speed |
|||
|
Average speed in a specified time period (travel segment or angle segment) |
||||
|
Speed measurement range |
0.1mm Sensor |
0.01～20.00m/s |
||
|
345° Angle Sensor |
0.01～25.00m/s |
|||
|
Laser Sensor |
0.01～15.00m/s(optional) |
|||
|
Travel measurement |
Actuating contact stroke, contact stroke (open distance), overstroke, overshoot stroke, or rebound stroke |
|||
|
Travel measurement range |
50mm Linear Sensor |
0-50mm |
Resolution |
0.1mm |
|
345° Rotation Sensor |
0-1000mm |
Resolution |
0.08о |
|
|
300mm Accelerometer |
0-3000mm |
Resolution |
0.1mm |
|
|
Measurement range |
Current |
0-20A |
Resolution |
0.01A |
|
Resistance |
0-2000Ω |
Resolution |
0.01Ω |
|
|
Power supply |
AC220V, 50Hz±10% |
|||
|
DC output |
DC6～270Vcontiniously adjustable,DC220V≤ 20A(short time) |
|||
|
External trigger voltage |
AC/DC10-300V, current≤120A |
|||
|
Isolation switch or energy storage circuit breaker measurement range |
Voltage output |
DC6～270V(adjustable) |
||
|
Power output time |
0.01-20(settable) |
|||
|
The maximum sampling time of the breaker signal is 200 seconds |
||||
|
Environment |
-20℃~+50℃,≤90%RH |
|||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
