| Brand Name: | Or-electric |
| Model Number: | ORGC-20B |
| MOQ: | 1 set |
| Price: | 2117~3176 USD/set |
| Payment Terms: | D/P,T/T |
| Supply Ability: | 170 sets/year |

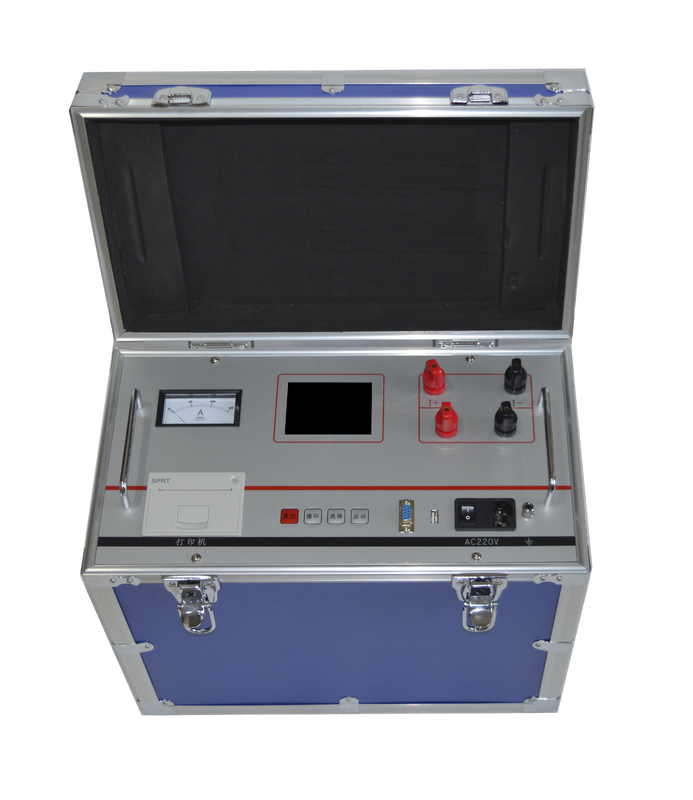

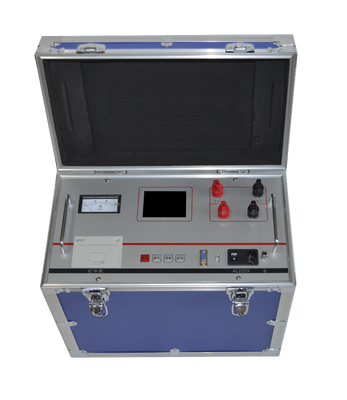

ORGC-20B Grounding Down-conductor Continuity Tester
I. Product introduction
The ORGC-20B Grounding Downlead Continuity Tester is specifically designed to evaluate the electrical integrity of grounding systems, with all its technical specifications meeting or exceeding relevant industry standards. The entire device is controlled by a high-performance microcontroller, ensuring a high degree of automation; it employs intelligent power management technology to effectively reduce internal heat generation and conserve energy; it features a compact 65K true-color LCD display with a 320×240 dot matrix and ultra-small pixels, providing clear visualization; it includes a built-in perpetual calendar clock and power-loss memory, capable of storing up to 1,000 sets of test data; and it is equipped with both RS232 and USB interfaces. The device is compact and easy to carry.
II.Technical parameters
|
test current |
1A,2.5A,5A,10A,20A |
|
|
measuring range |
20A |
100μΩ～1Ω |
|
10A |
500μΩ～2Ω |
|
|
5A |
1mΩ～4Ω |
|
|
2.5A |
2mΩ～8Ω |
|
|
1A |
5mΩ～20Ω |
|
|
minimum resolution |
0.1μΩ |
|
|
accuracy |
±(0.5% ± 2 characters) |
|
|
data storage |
1,000 sets |
|
|
work environment |
0℃～40℃, <90%RH |
|
|
working power supply |
AC 220V±10V,50Hz±1 Hz |
|
|
maximum power dissipation |
500W |
|
|
Main unit dimensions |
400mm×225mm×350mm |
|
|
Main unit weight |
15.1 kg (main unit) |
|
III.Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
