| Tên thương hiệu: | Or-electric |
| Số mẫu: | ORI (2E/5E/10E) |
| MOQ: | 1 bộ |
| Price: | 1030~2530 USD/set |
| Điều khoản thanh toán: | D/P,T/T,Western Union,MoneyGram |
| Khả năng cung cấp: | 200 bộ/năm |

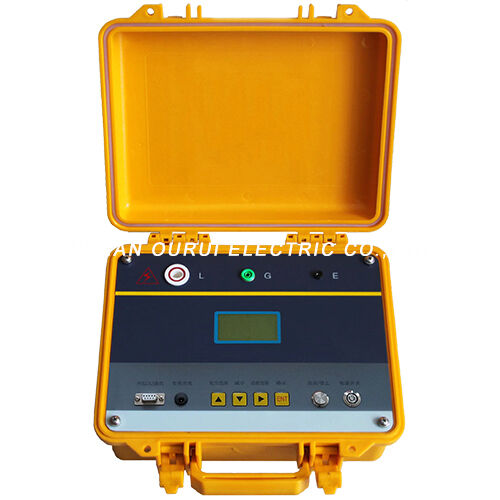

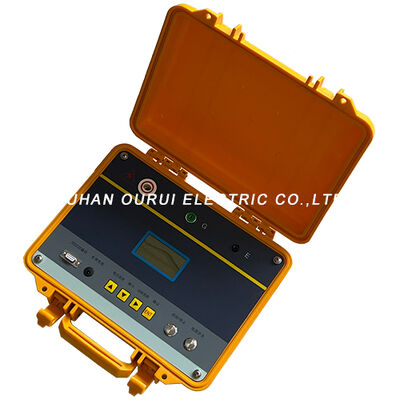

ORI(2E/5E/10E) Insulation Resistance Tester
I. Product introduction

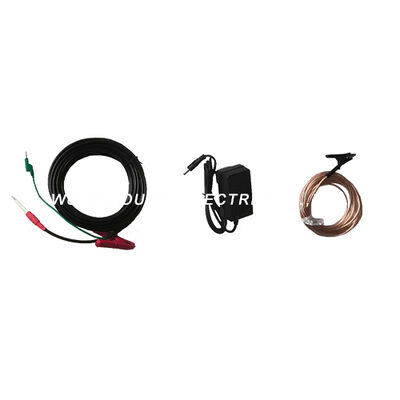

ORI (2E/5E/10E) insulation resistance tester is specially used for insulation test in laboratory or on-site. It contains high-precision micro-current measurement system and digital boost system. It can measure the test product by connecting it with only one high-voltage line and one signal line.
II.Features
● Adopt 32-bit micro-controller control, automatically calculate and display DAR, PI, DD and other measurement indicators.
● Dual display function of digital and analog pointer, displaying measurement data every 5 seconds, such as 5”10”15”20” to 600”; real-time display of measurement time, measurement voltage, measurement resistance, and insulation resistance and test time waveform.
● Large output current, short-circuit current ≧5mA. Strong anti-interference ability, can meet the on-site operation of ultra-high voltage substation.
● Special discharge circuit, fast discharge of large capacitive test products, 1uF capacitive test product discharge time only takes about 3 seconds.
● Enclosed rechargeable battery and charger, fully charged can be used continuously for 6 to 12 hours.
● With RS232 serial port, it has the function of computer operation instrument.
III. Technical parameters
|
Model & Output |
ORI(2E) |
250V,0.5kV,1kV,2.5kV |
Measurement range & Accuracy |
250V |
0.1M-1G |
10% |
|
ORI(5E) |
250V,0.5kV,1kV,2.5kV,5kV |
1-10G |
20% |
|||
|
ORI(10E) |
250V,0.5kV,1kV,2.5kV,5kV,10kV |
500V |
0.1M-20G |
10% |
||
|
Voltage accuracy |
10%±10V |
20-200G |
20% |
|||
|
Display |
Digital & analog pointer |
1000V |
0.1M-40G |
10% |
||
|
TEMP measurement |
-45℃～125℃ |
40-400G |
20% |
|||
|
Short-circuit current |
≧5mA |
2500V |
0.1-100G |
10% |
||
|
Measurement time |
1 minute to 10 minutes(Depending on the measurement method) |
100-1000G |
20% |
|||
|
5000V |
0.1-200G |
10% |
||||
|
Charging power supply |
180～270VAC, 50Hz/60Hz±1% |
200G-2000G |
20% |
|||
|
Working TEMP |
-10～40℃ |
10000V |
0.1-200G |
10% |
||
|
Working RH |
20～80％ |
200G-2000G |
20% |
|||
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
