| الاسم التجاري: | Or-electric |
| رقم الطراز: | الجرم السماوي (20F) |
| الـ MOQ: | 1 مجموعة |
| Price: | 1370~2057 USD/set |
| شروط الدفع: | د / ف، / تي تي، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 160 مجموعة / سنة |

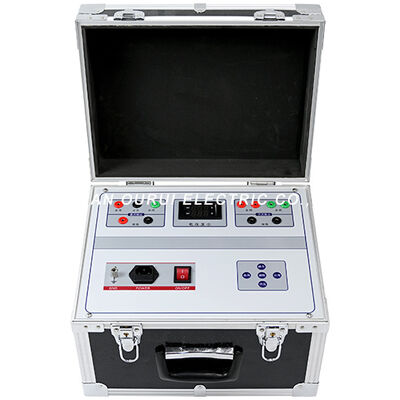

ORB(20F) AC/DC Power Control Box
I. Product introduction
ORB (20F) DC power control box adopts advanced compensation technology and the latest electronic components, with multiple protection functions and superior performance. It overcomes the voltage drop after loading and has a shutdown function at any time, which can ensure that the switch action circle is cut off at any time after power is turned on to avoid coil burning and work stably and reliably. It is suitable for various switch low voltage action tests and opening and closing tests in the power department.
II.Technical parameters
|
AC/DC voltage output |
20~260V ±1% |
|
AC/DC current output |
Max 20A, output time≤1000ms ≤10A, output time ≤60s |
|
Power supply |
AC 220V±10% ,50Hz/60Hz |
|
Environment |
-10℃～40℃,≤80 %RH |
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
