| نام تجاری: | Or-electric |
| شماره مدل: | orot-b |
| مقدار تولیدی: | 1 مجموعه |
| Price: | 2430~3640 USD/set |
| شرایط پرداخت: | D/P، T/T، وسترن یونیون، مانی گرام |
| توانایی عرضه: | 150 مجموعه در سال |

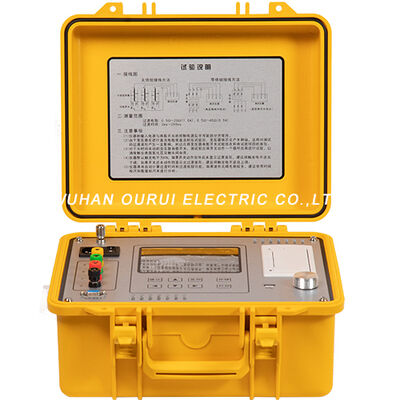

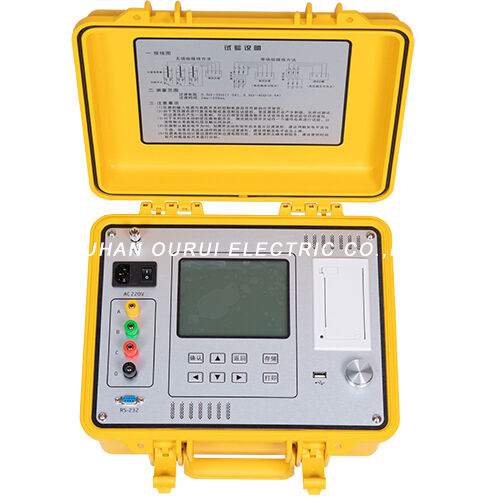

OROT-B On-load Tap Changer Tester
I. Product introduction
OROT-B on-load tap changer tester is mainly used to measure the transition waveform, transition time, each instantaneous transition resistance value, three-phase synchronization, etc. of the on-load tap changer of the transformer.
II.Features
● The instrument has large output current and light weight.
● Two-speed current output, wider test range and higher stability.
● Can automatically calculate transition resistance value and transition time value.
● With perfect protection circuit, it has strong reliability.
● 5.7-inch large LCD display, convenient for on-site operation.
● With U disk storage function, it can store more data waveforms.
● The keyboard and one-key shuttle are operated independently, making the instrument operability faster and more convenient.
III.Technical parameters
|
Output |
1.0A,0.5A |
|
|
Measurement range |
transition resistance |
0.5Ω～20Ω(1.0A) |
|
0.5Ω～40Ω(0.5A) |
||
|
transition time |
0～250ms |
|
|
Measurement Accuracy |
transition resistance |
±(5%reading+3words) |
|
transition time |
±(0.1%reading+3words) |
|
|
Storage |
U disk storage, local storage |
|
|
Working Temp |
-10℃～50℃ |
|
|
Working RH |
≤85%,no condensation |
|
|
Altitude |
≤1000m |
|
|
Power supply |
AC220V±10%,50HZ/60Hz |
|
|
Size |
345mm×295mm×175m |
|
|
Weight |
5kg |
|
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
