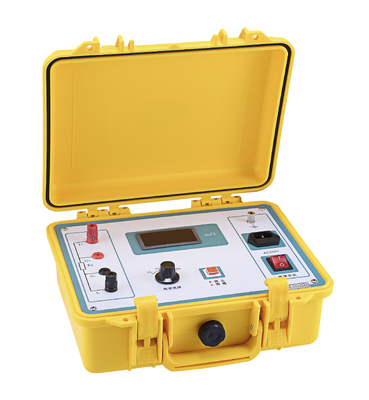

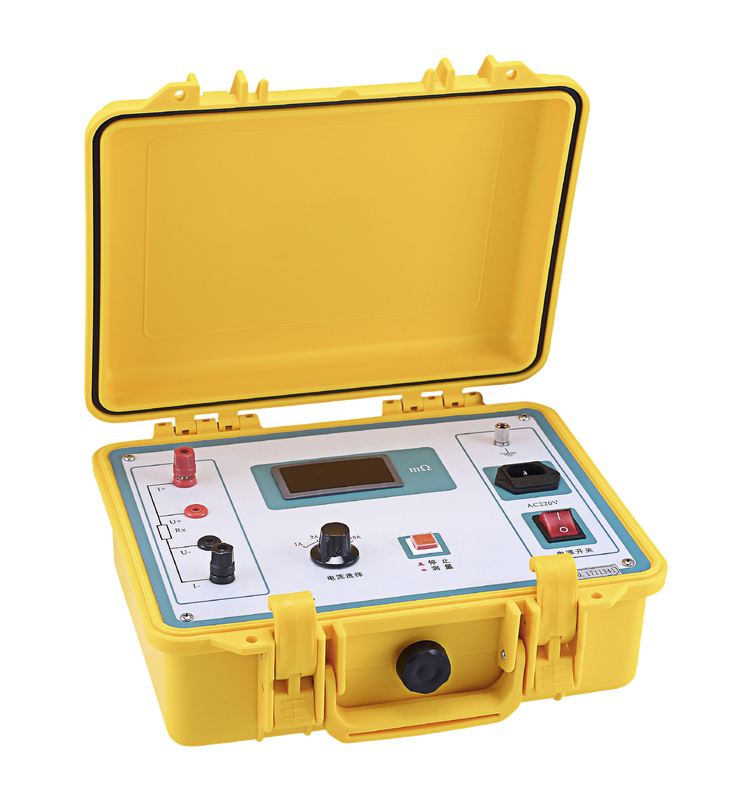

ORGC-10B Grounding Down-conductor Continuity Tester
I. Product introduction
The ORGC-10B Grounding Down-conductor Continuity Tester is specifically designed to evaluate the electrical integrity of grounding systems; all of its technical specifications meet or exceed relevant standard requirements. The instrument employs advanced power supply technology, overcoming the limitations of instantaneous current associated with pulse power supplies. It delivers high output current, enables prolonged continuous operation, and features an LED display for intuitive visualization of test results, ensuring excellent repeatability. Additionally, the device is compact, lightweight, and easy to transport.
II.Technical parameters
|
Current setting |
1A,2A,5A,10A |
|
measuring range |
1～1999mΩ |
|
resolution ratio |
1mΩ |
|
certainty of measurement |
±(0.5%+2d) |
|
Measure the radius |
50 meters |
|
operate mode |
continuation |
|
working power supply |
AC220V±10%,50Hz |
|
work environment |
-10℃～40℃,≤80 %RH |
|
Main unit dimensions |
300mm×270mm×200mm |
|
Main unit weight |
5kg(Excluding accessories) |
III.Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
