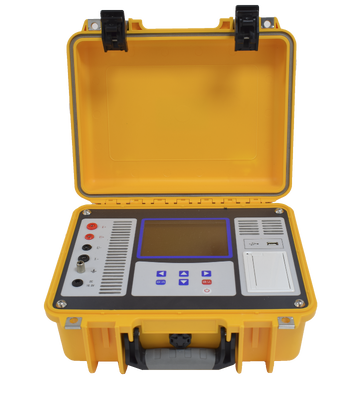

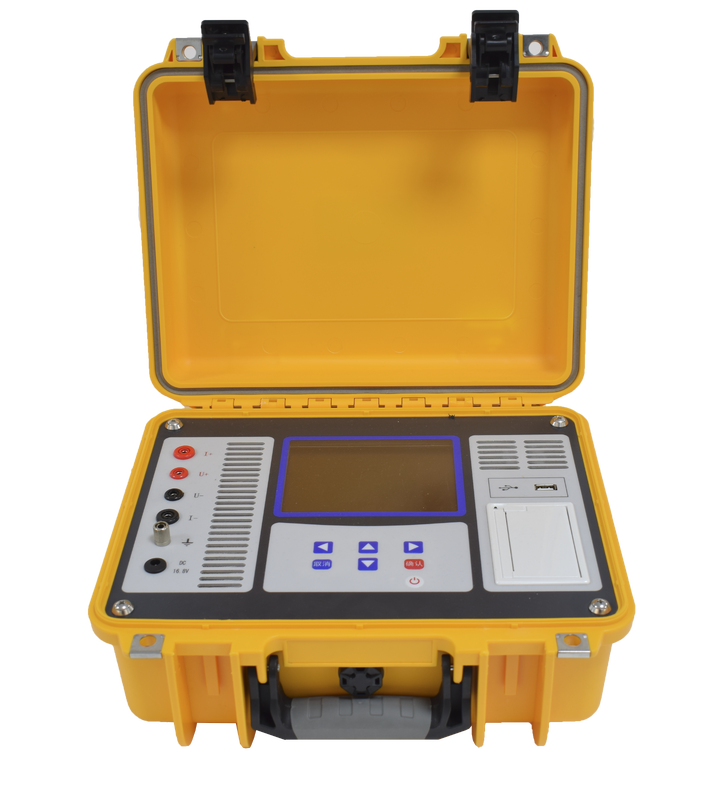

ORGC-10F Grounding Down-conductor Continuity Tester
I. Product introduction
The ORGC-10F Grounding Down-conductor Continuity Tester is specifically designed to evaluate the electrical integrity of grounding systems, with all its technical specifications meeting or exceeding relevant standard requirements. The instrument offers advantages such as high output current, wide measurement range, comprehensive protection features, compact size, and lightweight construction. It can be powered either by a lithium battery or 220 V AC power, featuring adaptive power selection. The device is equipped with a 5.6-inch oversized industrial-grade high-brightness color LCD screen that remains clearly legible even under intense sunlight. Additionally, it includes a thermal printer and a USB data interface, facilitating the printing and data transfer of test results.
II.Technical parameters
|
Current setting |
10A,5A,1A,100mA |
|
measuring range |
10A: 500μΩ~200mΩ |
|
5A: 10mΩ~1Ω |
|
|
1A: 100mΩ~20Ω |
|
|
100mA: 10Ω~200Ω |
|
|
accuracy |
±(Reading × 0.2% + 2 digits) |
|
resolution ratio |
0.1μΩ |
|
working power supply |
Built-in lithium battery or external charger |
|
work environment |
-10℃~50℃,≤90%HR |
|
Main unit weight |
3.6 kg (excluding test line) |
|
Main unit dimensions |
325 mm × 225 mm × 125 mm (length × width × height) |
III.Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
