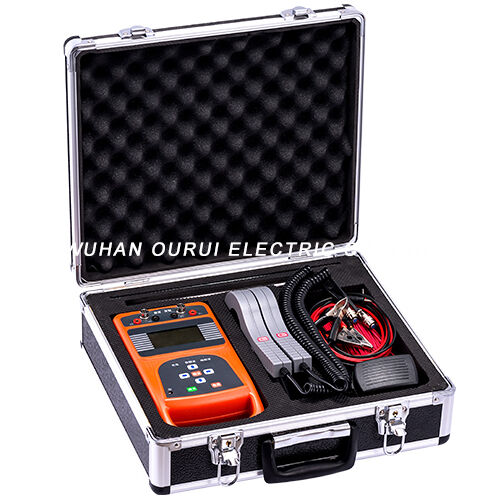

ORGR-D Earth Resistance Tester
I.Product introduction
ORGR-D earth resistance tester not only has the traditional function of using auxiliary electrodes to measure grounding resistance, but also has the unique function of measuring without auxiliary electrodes, which changes the traditional measurement principle and method of testing grounding resistance; The use of dual jaw non-contact measurement technology eliminates the need for auxiliary electrodes or isolating the grounding body from the load, achieving online measurement. Under conditions of single point grounding system and strong interference, the measurement method of using auxiliary electrodes can be adopted for measurement.
II. Technical parameters
|
Measurement range |
Dual-clamp |
0.01Ω～200Ω |
|
Ground-pile |
0.01Ω～200Ω |
|
|
Accuracy |
Dual-clamp |
±3%±2rd |
|
Ground-pile |
±2%±2rd |
|
|
Min resolution |
0.01Ω |
|
|
Clamp size |
Φ50mm |
|
|
Storage |
200 groups |
|
|
Work TEMP |
0℃～+50℃ |
|
|
Power supply |
8 AA batteries |
|
|
Weight |
0.8kg(no batteries) |
|
|
Size |
265mm×130mm×65mm |
|
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
