| ชื่อแบรนด์: | Or-electric |
| เลขรุ่น: | ORGR-D |
| MOQ: | 1 ชุด |
| Price: | 260~390 USD/set |
| เงื่อนไขการจ่ายเงิน: | D/P,T/T,เวสเทิร์นยูเนี่ยน,MoneyGram |
| ความสามารถในการจําหน่าย: | 200 ชุด/ปี |

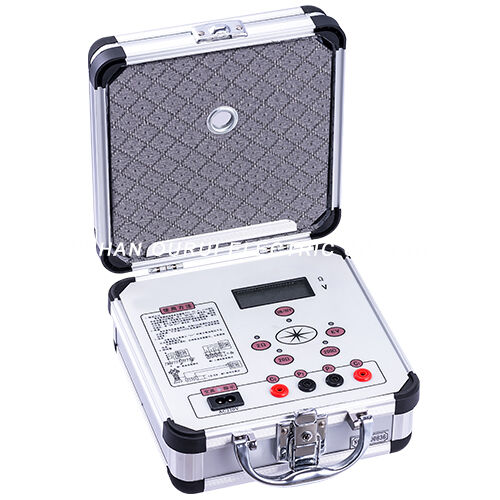

ORGR-D Earth Resistance Tester
I.Product introduction
ORGR-D earth resistance tester uses an internal DC/AC converter to convert DC into AC low-frequency constant current, which forms a circuit through the auxiliary grounding electrode C and the tested object E. An AC voltage drop is generated on the tested object, amplified by the AC amplifier through the auxiliary grounding electrode P, and then detected and displayed on the meter head. With the help of a multiplier switch, three different measurement limits can be obtained: 0-2 Ω, 0-20 Ω, and 0-200 Ω.
II. Technical parameters
|
Measurement range & constant current(RMS) |
Resistance |
10mA |
0～2Ω |
|
10mA |
2～20Ω |
||
|
1mA |
20～200Ω |
||
|
Voltage |
AC 0～19.99V |
||
|
Accuracy |
0～0.2Ω≤±3%±1d |
||
|
0.2Ω～199.9Ω≤±1.5%±1d |
|||
|
1～19.99V≤±3%±1d |
|||
|
Resolution |
0.001Ω,0.01Ω,0.1Ω,0.01V |
||
|
Measurement error |
Allowable auxiliary grounding resistance RC(Between C1 and C2) |
0～2Ω,2～20Ω ≤1kΩ |
|
|
20～200Ω ≤2kΩ |
|||
|
RP(between P1 and P2)<40k |
|||
|
Allowable ground voltage(RMS) |
≤5V |
||
|
Error |
≤±5% |
||
|
Power supply |
DC |
8×1.5V(AA,R6)batteries |
|
|
AC |
220V/50Hz |
||
|
Environment |
0℃～+45℃,≤85%RH |
||
|
Size |
220mm×200mm×105mm |
||
|
Weight |
≤1.4kg |
||
III. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
