| Brand Name: | Or-electric |
| Model Number: | ORTSS-10kV |
| MOQ: | 1 set |
| Price: | 14000~28000 USD/set |
| Payment Terms: | D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets/year |
ORTSS-10kV Transformer/Reactor Integrated Test System (Split-type)
I. Product introduction
10kV transformer/reactor integrated test system (split-type) is designed in strict accordance with relevant standards such as GB 50150/IEC 60076-3. It adopts a steel structure control console with compact structure and high cost performance. It can perform no-load test, load test, power-frequency voltage withstand test, induced voltage withstand test, etc. All tests can be automated without complex operations and manual calculations, the test results are automatically calculated and saved.
II. Electric tests (customizable)
● No-load test.
● Load test.
● Power-frequency voltage withstand test.
● Induced voltage withstand test.
III. Configuration list (customizable)
|
Equipment name |
QTY (set) |
Note |
|
|
Test system console |
Control bench |
1 |
Include HIM touch screen, Siemens PLC and well-known brand electronic components |
|
Power analyzer |
1 |
4U chassis |
|
|
Industrial computer & LCD |
1 |
Advantech, one-body |
|
|
Test software system |
1 |
Written in Visual Studio, dedicated to comprehensive test control and measurement |
|
|
Current transformer |
3 |
Dry-type,0.05 class |
|
|
LV capacitor bank |
1 |
3-phase |
|
|
Induced electric voltage regulator |
1 |
Oil-immersed,with casters |
|
|

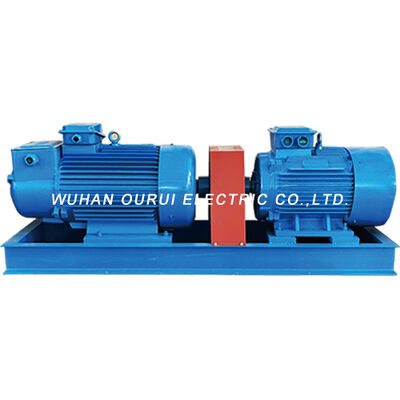

Generator set |
1 |
50Hz/150Hz |
|
|
AC test transformer |
1 |
Optional protection resistor, voltage divider and peak meter |
|
IV. Warranty period & after-sale service
● The warranty period for the products supplied by the supplier is 12 months from the date of product acceptance or 15 months from the date of the last piece of equipment arrival, whichever comes first. Within the warranty period, the supplier shall provide free services to the purchaser; After the warranty period, the supplier will only charge a cost fee for the expenses incurred in repairing the equipment.
● All products come with lifetime maintenance services.
